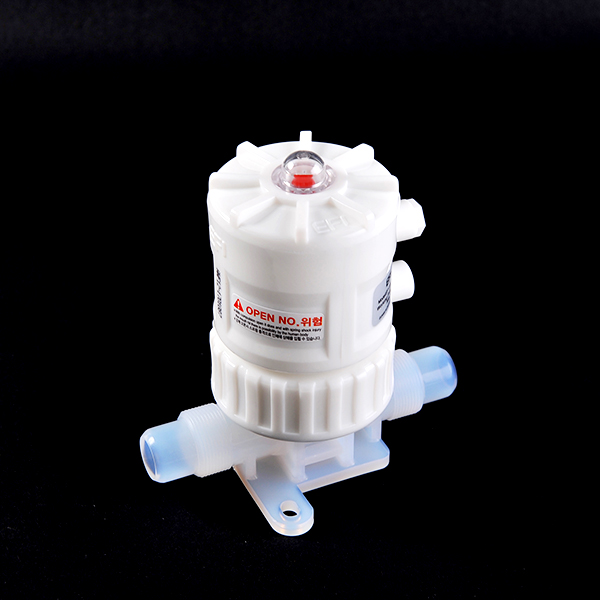

AWF Series (Open/Close)

Pneumatic Valve for Tube

2-Way Weir Type Pneumatic Diaphragm Valves

Characteristics - Used as a control Valve for semiconductor, LCD and pharmaceutical conveying lines
where high purity is required
- PFA and PTFE, which have excellent chemical resistance, are used in the wetted part to
block metal ions and other contaminants

Product Details

Item	Category	1/4"~1" / 15A~25A	1-1/2"~2" / 40A~50A
Working Pressure	MF/AT series, ECC, 3WAY	Max. 8kg/㎠	Max. 7kg/㎠
	WF, AWF	Max. 6kg/㎠	-
	Lined	Max. 10kg/㎠	Max. 10kg/㎠
Back Pressure	MF/AT series, ECC, 3WAY	Max. 7kg/㎠	Max. 6kg/㎠
Pneumatic Supply Pressure	AT series, AWF	4kg/㎠ to 6kg/㎠	Port : 1/8”PT

Item	Category	1/4"~1" / 15A~25A	1-1/2"~2" / 40A~50A
Working Pressure	MF/AT series, ECC, 3WAY	-10℃ to 60℃	0℃ to 90℃
	WF, AWF	-	0℃ to 80℃
	Lined	-	Max. 120℃

All EF’s high purity products are subject to optimum quality management with strict quality control.

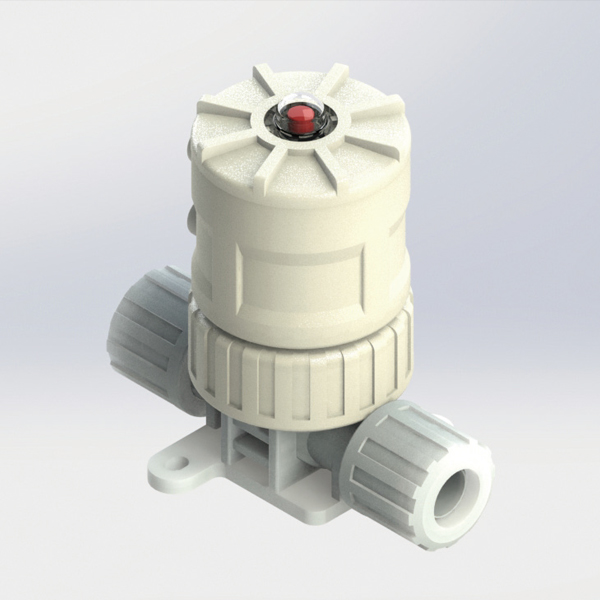

Flare-Type

Welding-Type

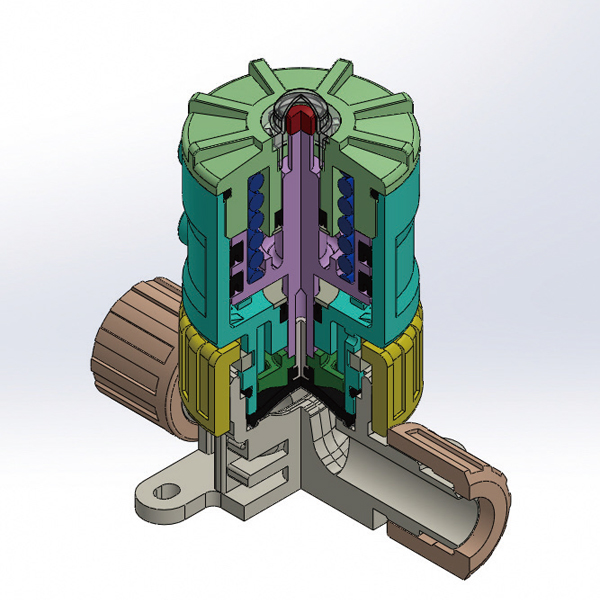

01 Features

Body Nut
Pneumatic
Flare
Diaphragm
Weir

02 Advantages

Pure PFA
By using PFA and PTFE with excellent chemical resistance in the wetted parts, we fundamentally block metal ions and other contaminants.
Compact Design
Designed with a simple structure to occupy minimal space.
Clean Room
Produced in a clean environment to manufacture top-quality products free from contaminants.
Leak Detection
Allows immediate confirmation of leakage status, minimizing waste of chemical solutions.

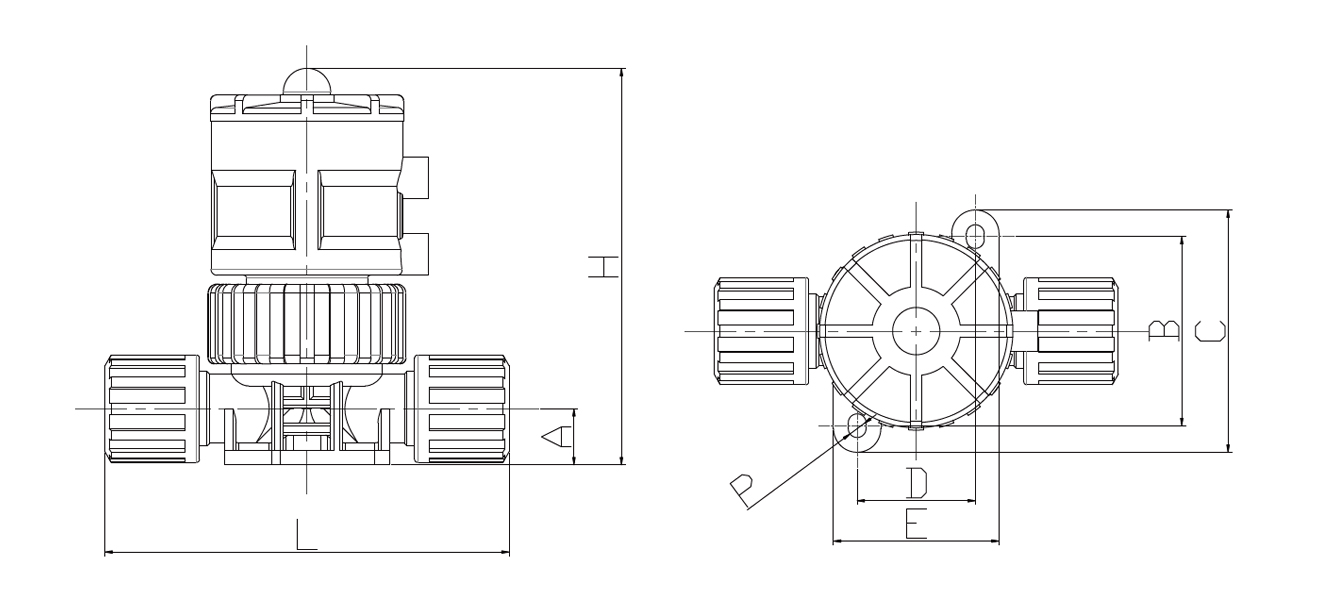

03 Product Drawings

* (mm) ** (Cv) Connection Type : Pipe

Part No.	Size	Flow Factor**	L*	H*	A*	B*	C*	D*	E*	P Hole Size
EF-AWF-04	1/4"	0.29	104.6	111.5	13.6	51.0	65.5	34.0	48.5	5.5
EF-AWF-06	3/8"	1.02	104.6	111.5	13.6	51.0	65.5	34.0	48.5	5.5
EF-AWF-08	1/2"	2.27	122.0	127.0	16.0	64.0	82.0	40.0	56.0	6.0
EF-AWF-12	3/4"	5.07	122.0	132.0	19.0	64.0	82.0	40.0	56.0	6.0
EF-AWF-16	1"	11.60	167.0	165.0	25.0	74.0	94.0	56.0	77.0	6.0
