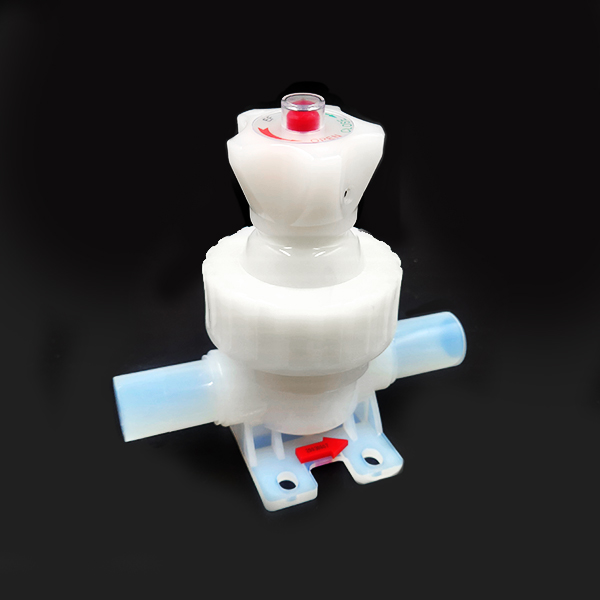

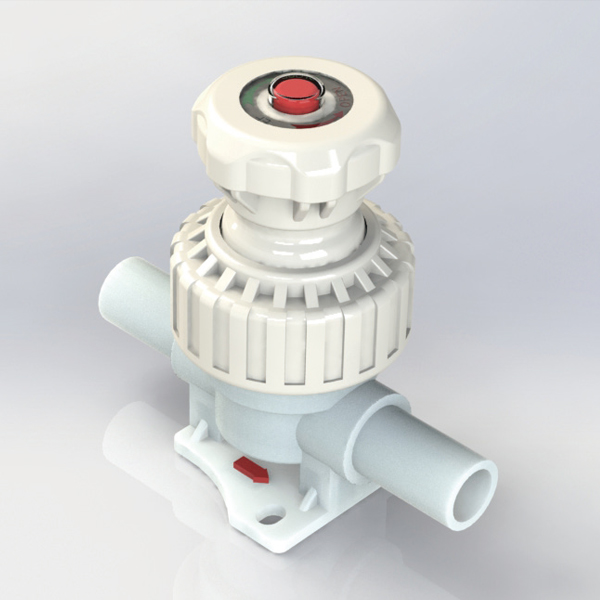

MPS Valve

Manual Valve for Pipe

2-Way Manual Diaphragm Valves

Characteristics - Used as a control Valve for semiconductor, LCD and pharmaceutical conveying lines
where high purity is required
- PFA and PTFE, which have excellent chemical resistance, are used in the wetted part to
block metal ions and other contaminants
Product Details
Item Category 1/4"~1" / 15A~25A 1-1/2"~2" / 40A~50A
Working Pressure MF/AT series, ECC, 3WAY Max. 8kg/㎠ Max. 7kg/㎠
WF, AWF Max. 6kg/㎠ -
Lined Max. 10kg/㎠ Max. 10kg/㎠
Back Pressure MF/AT series, ECC, 3WAY Max. 7kg/㎠ Max. 6kg/㎠
Pneumatic Supply Pressure AT series, AWF 4kg/㎠ to 6kg/㎠ Port : 1/8”PT
Item Category 1/4"~1" / 15A~25A 1-1/2"~2" / 40A~50A
Working Pressure MF/AT series, ECC, 3WAY -10℃ to 60℃ 0℃ to 90℃
WF, AWF - 0℃ to 80℃
Lined - Max. 120℃
All EF’s high purity products are subject to optimum quality management with strict quality control.

Flare-Type

Welding-Type

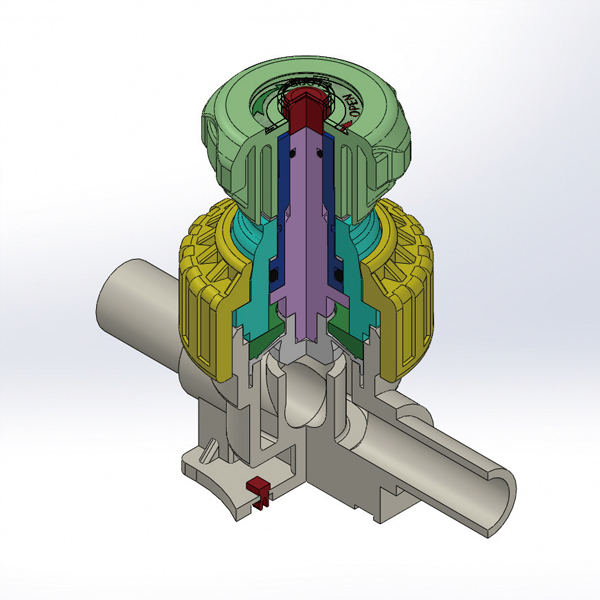

01 Features
  • Body Nut
  • Manual
  • Welding
  • Diaphragm
02 Advantages
  • Pure PFA

    By using PFA and PTFE with excellent chemical resistance in the wetted parts, we fundamentally block metal ions and other contaminants.

  • Compact Design

    Designed with a simple structure to occupy minimal space.

  • Clean Room

    Produced in a clean environment to manufacture top-quality products free from contaminants.

  • Leak Detection

    Allows immediate confirmation of leakage status, minimizing waste of chemical solutions.

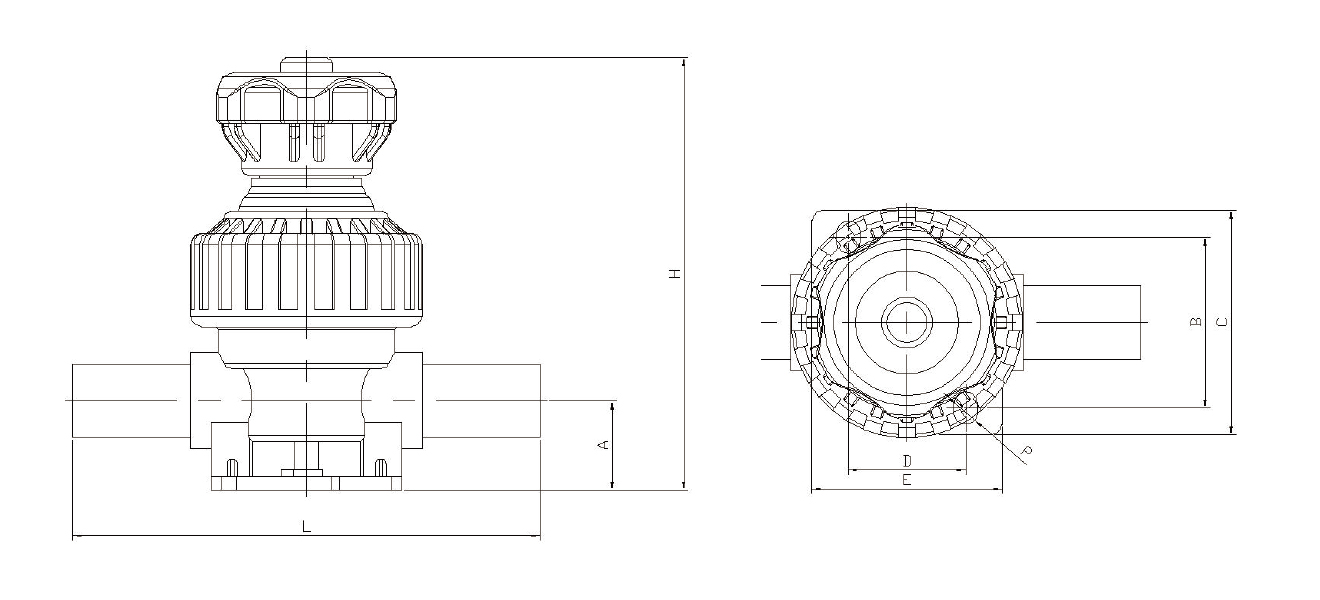

03 Product Drawings
* (mm) ** (Cv) Connection Type : Pipe

Part No.

Size

Flow
Factor**

L*

H*

 A*

 B*

C*

D*

 E*

P
Hole Size

 EF-MPS-015

15A

4.6

152

126

26

47

65

34

55

7

 EF-MPS-020

20A

8.8

156

151

31

72

92

40

63

8
