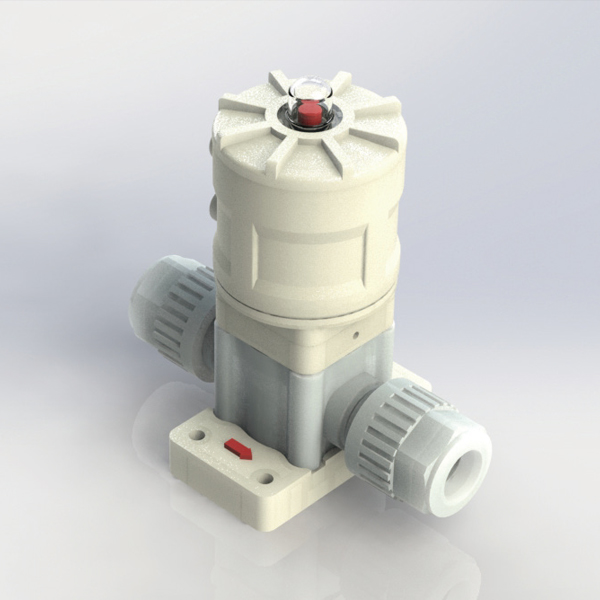

ATF Valve

Pneumatic Valve for Tube

2-Way Pneumatic Diaphragm Valves

특성 - 고순도가 요구되는 반도체, LCD 공정의약품 이송 라인의 제어 밸브로 사용
- Used as a control Valve for semiconductor, LCD and pharmaceutical conveying lines
where high purity is required
- 내 화학성이 우수한 PFA 및 PTFE를 접액부에 사용하여 금속이온 및 기타 오염원을 원천적으로 차단하였음
- PFA and PTFE, which have excellent chemical resistance, are used in the wetted part to
block metal ions and other contaminants
제품 상세 정보
항목 구분 1/4"~1" / 15A~25A 1-1/2"~2" / 40A~50A
Working Pressure MF/AT series, ECC, 3WAY Max. 8kg/㎠ Max. 7kg/㎠
WF, AWF Max. 6kg/㎠ -
Lined Max. 10kg/㎠ Max. 10kg/㎠
Back Pressure MF/AT series, ECC, 3WAY Max. 7kg/㎠ Max. 6kg/㎠
Pneumatic Supply Pressure AT series, AWF 4kg/㎠ to 6kg/㎠ Port : 1/8”PT

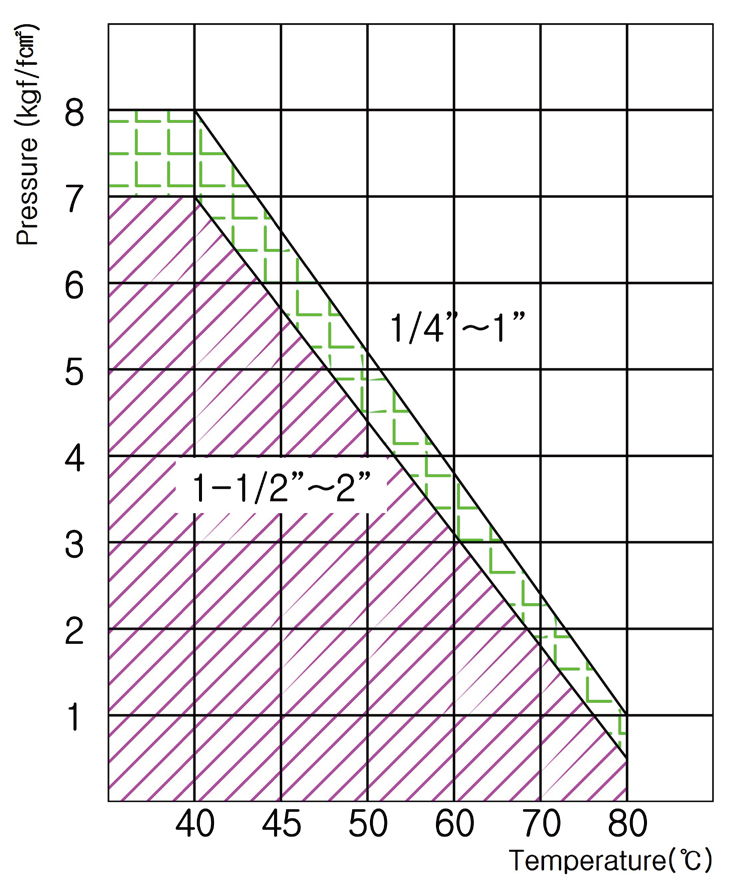

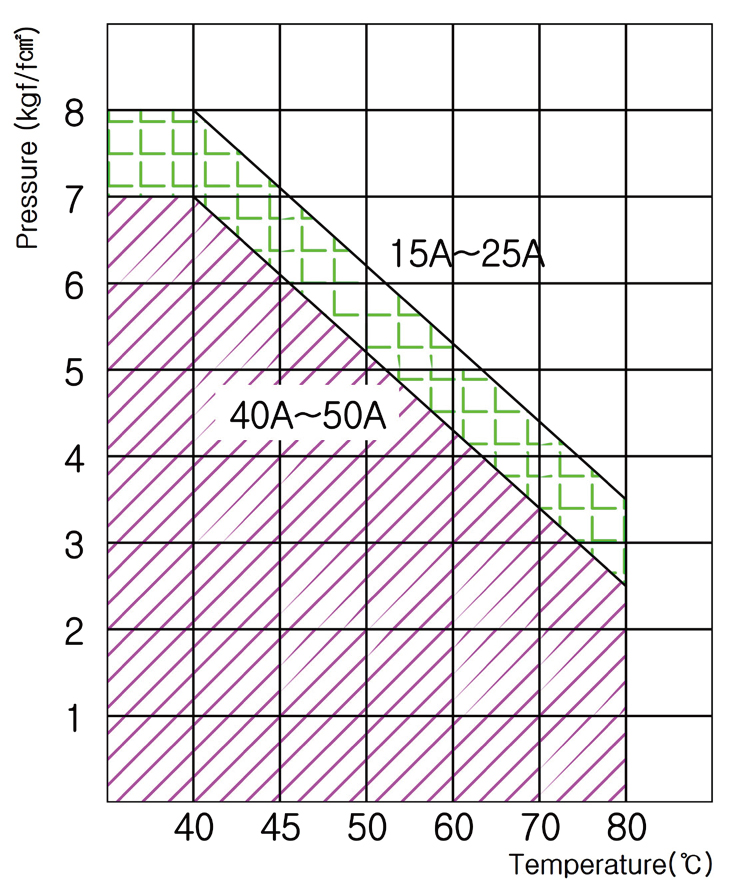

항목 구분 1/4"~1" / 15A~25A 1-1/2"~2" / 40A~50A
Working Pressure MF/AT series, ECC, 3WAY -10℃ to 60℃ 0℃ to 90℃
WF, AWF - 0℃ to 80℃
Lined - Max. 120℃
EF의 모든 제품은 엄격한 품질 관리를 통해 최적의 품질 유지합니다.
All EF’s high purity products are subject to optimum quality management with strict quality control.

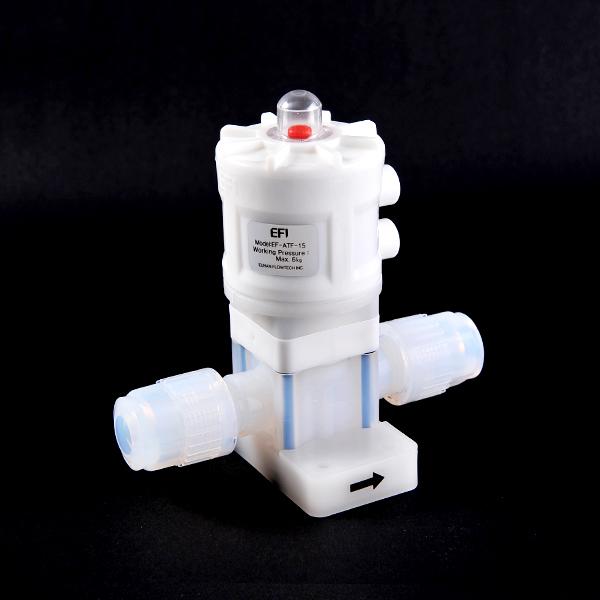

Flare-Type

Welding-Type

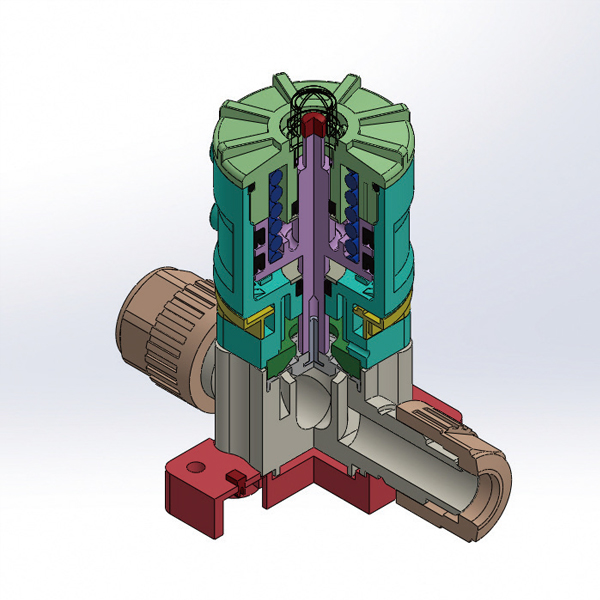

01 특징
  • Bolting
  • Pneumatic
  • Flare
  • Diaphragm
02 장점
  • Pure PFA

    내화학성이 우수한 PFA 및 PTFE를 접액부에 사용하여 금속이온 및 기타오염원을 원천적으로 차단합니다.

  • Compact Design

    간결한 설계로 최소한의 공간을 차지하도록 제작하였습니다.

  • Clean Room

    깨끗한 공간에서 생산하여 오염물질이 혼합되지 않은 최상품의 제품을 제작합니다.

  • Leak Detection

    누수 현황을 바로 확인할 수 있어 약액의 낭비를 최소화 할 수 있습니다.

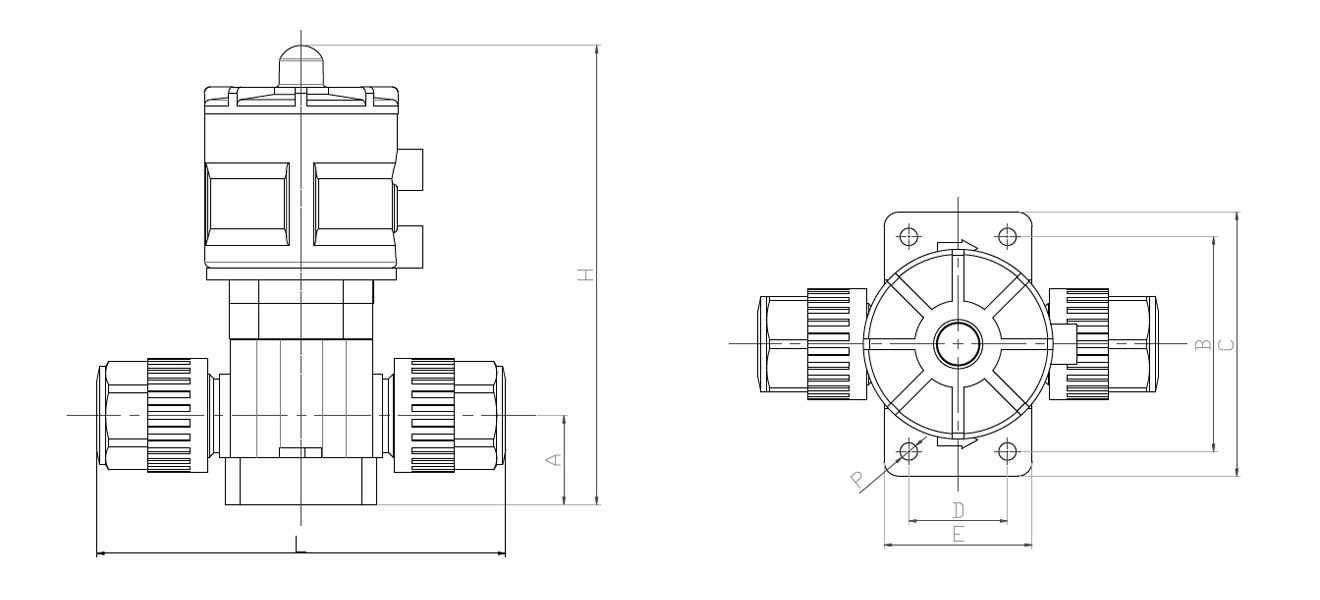

03 제품 도면
* (mm) ** (Cv) Connection Type : Tube

Part No.

Size

Flow
Factor**

L*

H*

 A*

 B*

C*

D*

 E*

P
Hole크기

 EF-ATF-010

1/4"

0.4

106

68

20

50

60

-

35

5

 EF-ATF-012

3/8"

0.8

108

71

21

50

60

-

35

5

 EF-ATF-015

1/2"

1.8

137

132

26

69

84

26

42

5

 EF-ATF-020

3/4"

4.2

150

155

30

75

91

34

51

6

 EF-ATF-025

1"

7.8

177

175

37

90

105

40

66

6

 EF-ATF-040V

1-1/2"

20.3

287

237

50

109

131

60

81

8
