MF Valve

Manual Valve for Tube

2-Way Manual Diaphragm Valves

특성 - 고순도가 요구되는 반도체, LCD 공정의약품 이송 라인의 제어 밸브로 사용
- Used as a control Valve for semiconductor, LCD and pharmaceutical conveying lines
where high purity is required
- 내 화학성이 우수한 PFA 및 PTFE를 접액부에 사용하여 금속이온 및 기타 오염원을 원천적으로 차단하였음
- PFA and PTFE, which have excellent chemical resistance, are used in the wetted part to
block metal ions and other contaminants
제품 상세 정보
항목 구분 1/4"~1" / 15A~25A 1-1/2"~2" / 40A~50A
Working Pressure MF/AT series, ECC, 3WAY Max. 8kg/㎠ Max. 7kg/㎠
WF, AWF Max. 6kg/㎠ -
Lined Max. 10kg/㎠ Max. 10kg/㎠
Back Pressure MF/AT series, ECC, 3WAY Max. 7kg/㎠ Max. 6kg/㎠
Pneumatic Supply Pressure AT series, AWF 4kg/㎠ to 6kg/㎠ Port : 1/8”PT
항목 구분 1/4"~1" / 15A~25A 1-1/2"~2" / 40A~50A
Working Pressure MF/AT series, ECC, 3WAY -10℃ to 60℃ 0℃ to 90℃
WF, AWF - 0℃ to 80℃
Lined - Max. 120℃
EF의 모든 제품은 엄격한 품질 관리를 통해 최적의 품질 유지합니다.
All EF’s high purity products are subject to optimum quality management with strict quality control.

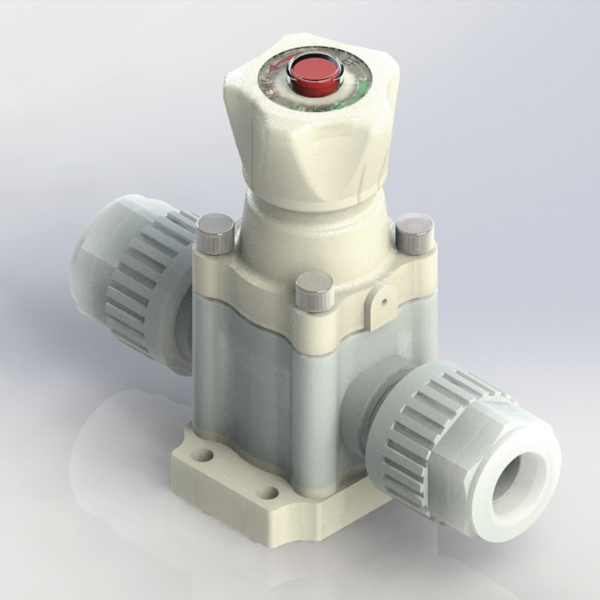

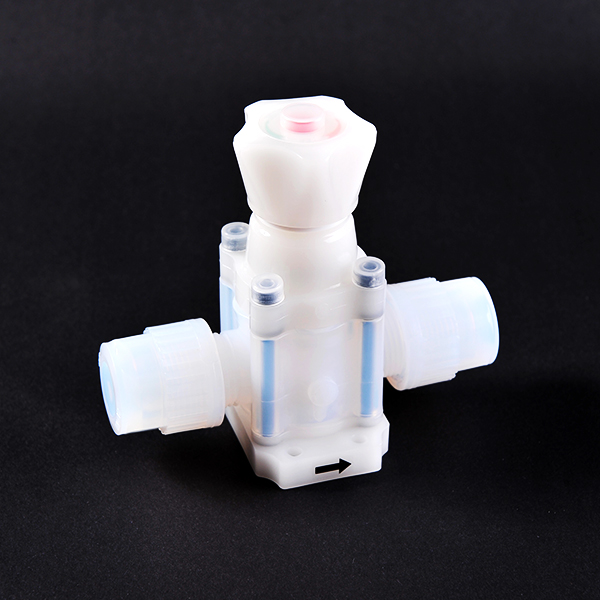

Flare-Type

Welding-Type

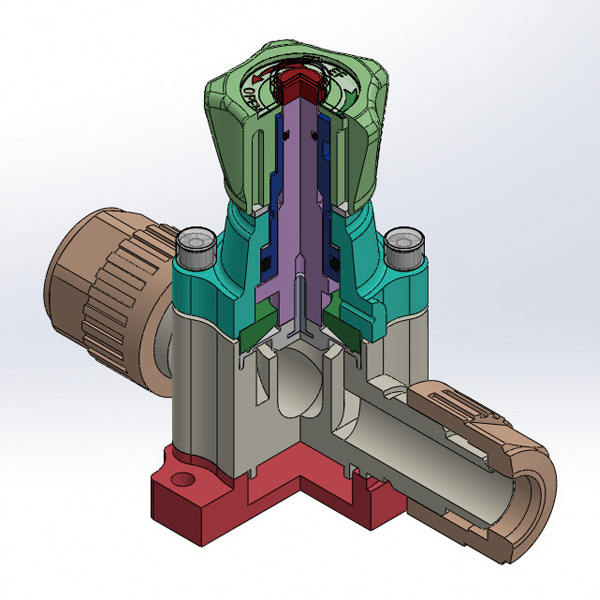

01 특징
  • Bolting
  • Manual
  • Flare
  • Diaphragm
02 장점
  • Pure PFA

    내화학성이 우수한 PFA 및 PTFE를 접액부에 사용하여 금속이온 및 기타오염원을 원천적으로 차단합니다.

  • Compact Design

    간결한 설계로 최소한의 공간을 차지하도록 제작하였습니다.

  • Clean Room

    깨끗한 공간에서 생산하여 오염물질이 혼합되지 않은 최상품의 제품을 제작합니다.

  • Leak Detection

    누수 현황을 바로 확인할 수 있어 약액의 낭비를 최소화 할 수 있습니다.

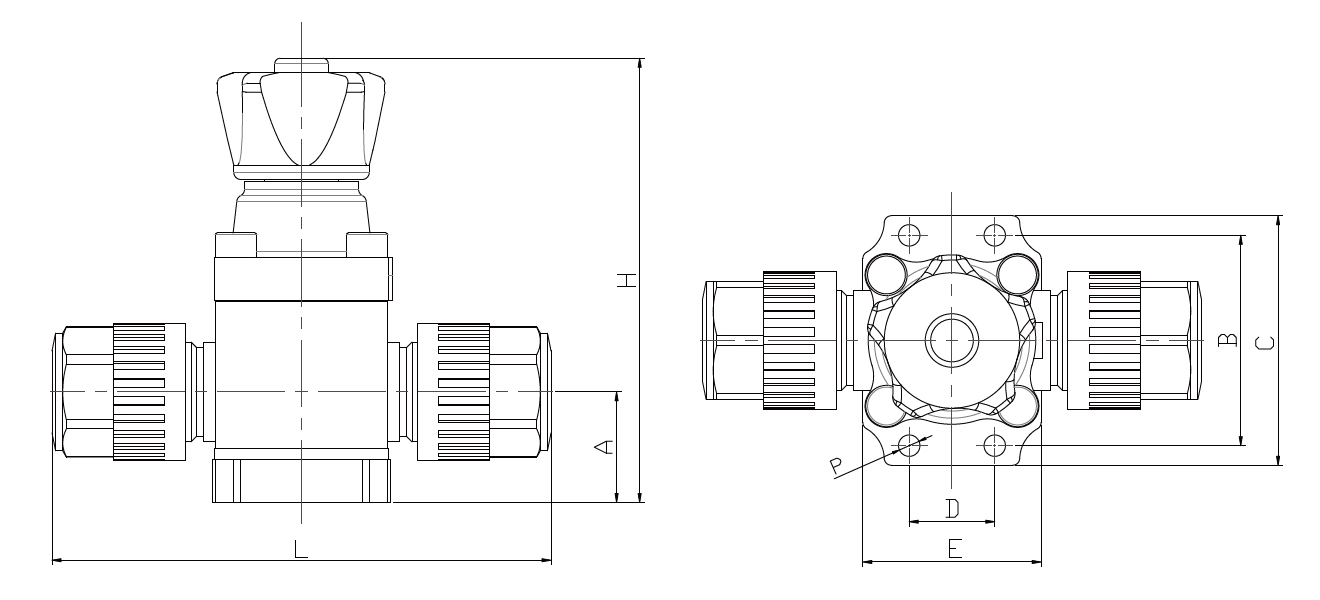

03 제품 도면
* (mm) ** (Cv) Connection Type : Tube

Part No.

Size

Flow
Factor**

L*

H*

 A*

 B*

C*

D*

 E*

P
Hole크기

 EF-MF-010V

 1/4”

 0.4

107

75

20

50

60

-

35

5

 EF-MF-012V

 3/8”

 0.8

110

78

21

50

60

-

35

5

 EF-MF-015V

 1/2”

 1.8

119

110

27

50

60

-

40

5

 EF-MF-020V

 3/4”

 4.2

138

128

31

60

70

24

50

6

 EF-MF-2015V

 3/4”(1/2”)

 1.7

135

128

31/27

60

70

24

50

6

 EF-MF-025V

 1”

 7.8

160

132

27

80

100

28

46

7

 EF-MF-040V

1-1/2"

20.3

286

202

50

109

131

60

81

8
