Pipe

Fusible Piping

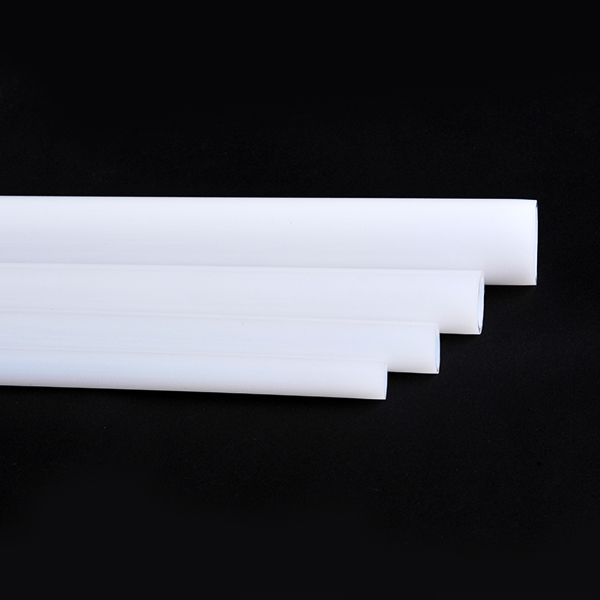

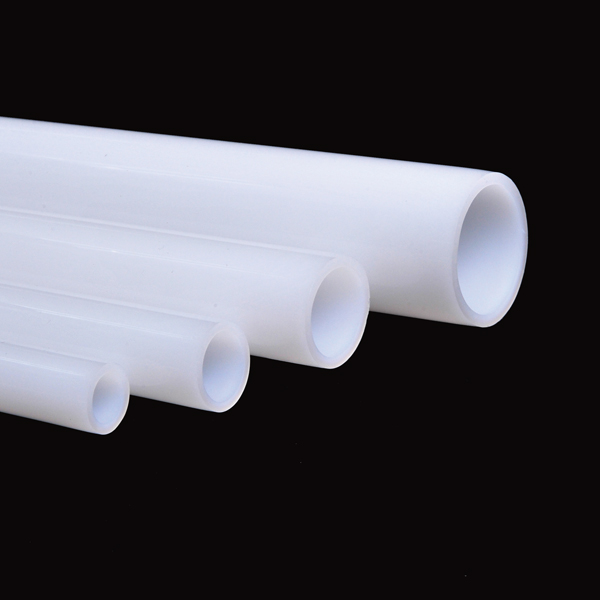

Characteristics EUBOND Ultra pure PFA PIPE is made 100% PFA to provide the lowest extractable metals, ions and fluorides, and this inner surface is more smooth than any other Pipe.
This Pipe also has improving corrosion properties, reducing permeability to gases and liquids, and improving mechanical properties.
Operating Specifications
- Working Pressure
Max. 8kg/㎠ : 15A to 25A
Max. 7kg/㎠ : 40A to 50A
01 Features
  • All Size
  • Welding
  • User Length
02 Advantages
  • Pure PFA

    By using PFA and PTFE with excellent chemical resistance in the wetted parts, we fundamentally block metal ions and other contaminants.

  • Compact Design

    Designed with a simple structure to occupy minimal space.

  • Clean Room

    Produced in a clean environment to manufacture top-quality products free from contaminants.

Part Number Nominal Size O.D O.D Tolerance Wall Thickness Wall THK. Tolerance
FP-015 15A 21.34 ±0.127 2.77 ±0.381
FP-020 20A 26.67 ±0.127 2.87 ±0.381
FP-025 25A 33.40 ±0.178 3.38 ±0.381
FP-040 40A 48.26 ±0.200 3.68 ±0.381
FP-050 50A 60.33 ±0.200 3.91 ±0.381

We can provide products made of other material as you want.
Please contact us if you want other size of products
