Tube

Tubing

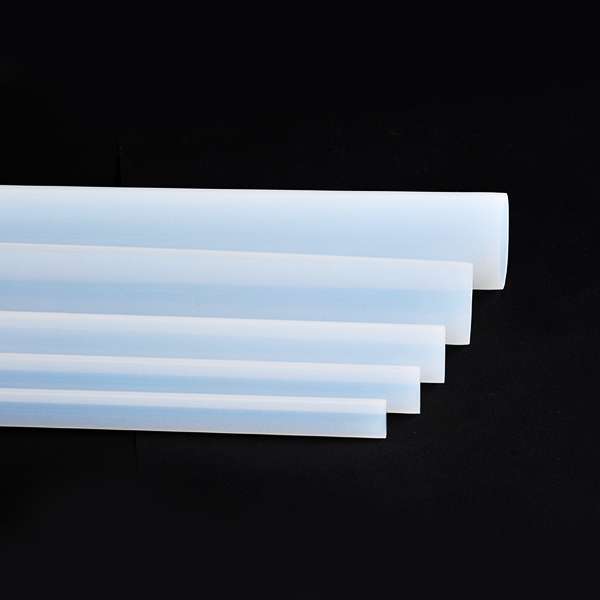

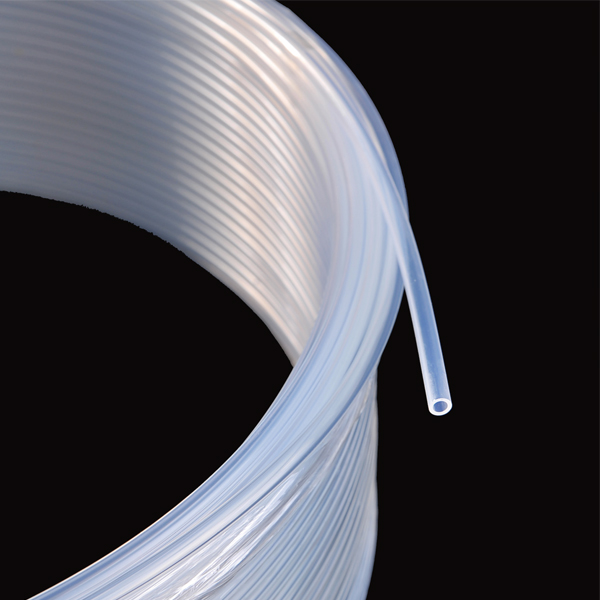

Characteristics EUFLON Ultra pure PFA TUBE is made 100% PFA to provide the lowest extractable metals, ions and fluorides, and this inner surface is more smooth than any other tube.
This tubes also has improving corrosion properties, reducing permeability to gases and liquids, and improving mechanical properties.
Operating Specifications
- Working Pressure
Max. 8kg/㎠ : 1/4” to 1”
Max. 7kg/㎠ : 1-1/2” to 2”
01 Features
  • All Size
  • Flare
  • User Length
02 Advantages
  • Pure PFA

    By using PFA and PTFE with excellent chemical resistance in the wetted parts, we fundamentally block metal ions and other contaminants.

  • Compact Design

    Designed with a simple structure to occupy minimal space.

  • Clean Room

    Produced in a clean environment to manufacture top-quality products free from contaminants.

Part Number Nominal Size O.D O.D Tolerance I.D Wall Thickness Wall THK. Tolerance
T-02 1/8" 3.18 ±0.076 1.65 0.76 ±0.102
T-04-01 1/4" 6.35 ±0.102 3.96 1.19 ±0.102
T-04-02 1/4" 6.35 ±0.102 4.35 1.00 ±0.102
T-06 3/8" 9.53 ±0.102 6.38 1.57 ±0.102
T-08 1/2" 12.70 ±0.127 9.55 1.57 ±0.127
T-12 3/4" 19.05 ±0.127 15.90 1.57 ±0.127
T-16 1" 25.40 ±0.127 22.25 1.57 ±0.127
T-20 1-1/4" 31.80 ±0.20 28.0 1.9 ±0.127
T-24-01 1-1/2" 38.10 ±0.20 33.73 2.18 ±0.127
T-24-02 1-1/2" 40.00 ±0.20 35.63 2.18 ±0.127
T-32 2" 50.80 ±0.250 46.00 2.40 ±0.250

We can provide products made of other material as you want.
Please contact us if you want other size of products
