Pipe

Fusible Piping

특성 EUBOND 초순도 PFA Pipe는 금속, 이온 및 불소의 검출량을 가장 낮게 제공하기 위해 100% PFA로 만들어졌으며, 이 내부 표면은 다른 어떤 Pipe보다 매끄럽습니다.
또한 PFA Pipe는 부식 특성을 개선하고, 가스와 액체에 대한 투과성을 줄이며, 개선된 기계적 특성을 보여줍니다.

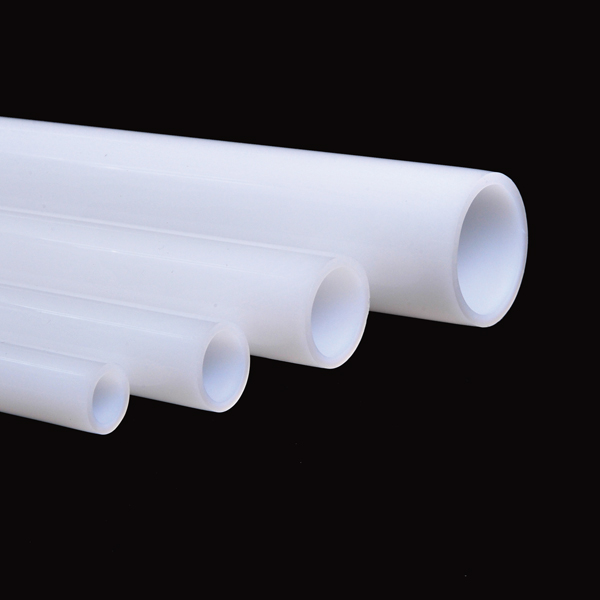

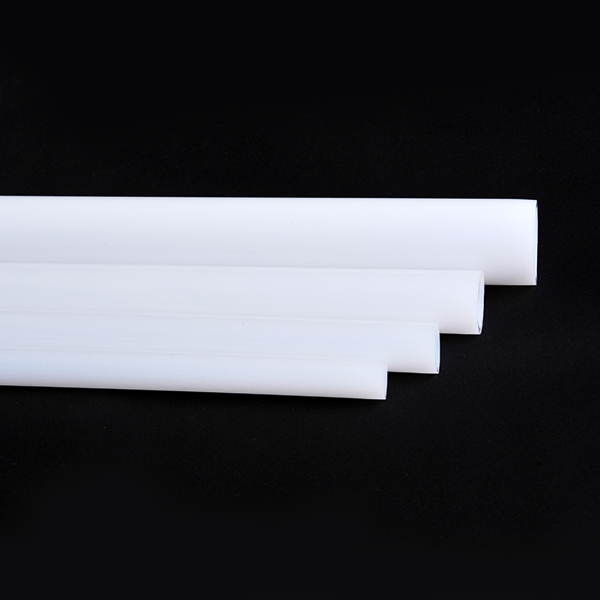

EUBOND Ultra pure PFA PIPE is made 100% PFA to provide the lowest extractable metals, ions and fluorides, and this inner surface is more smooth than any other Pipe.
This Pipe also has improving corrosion properties, reducing permeability to gases and liquids, and improving mechanical properties.

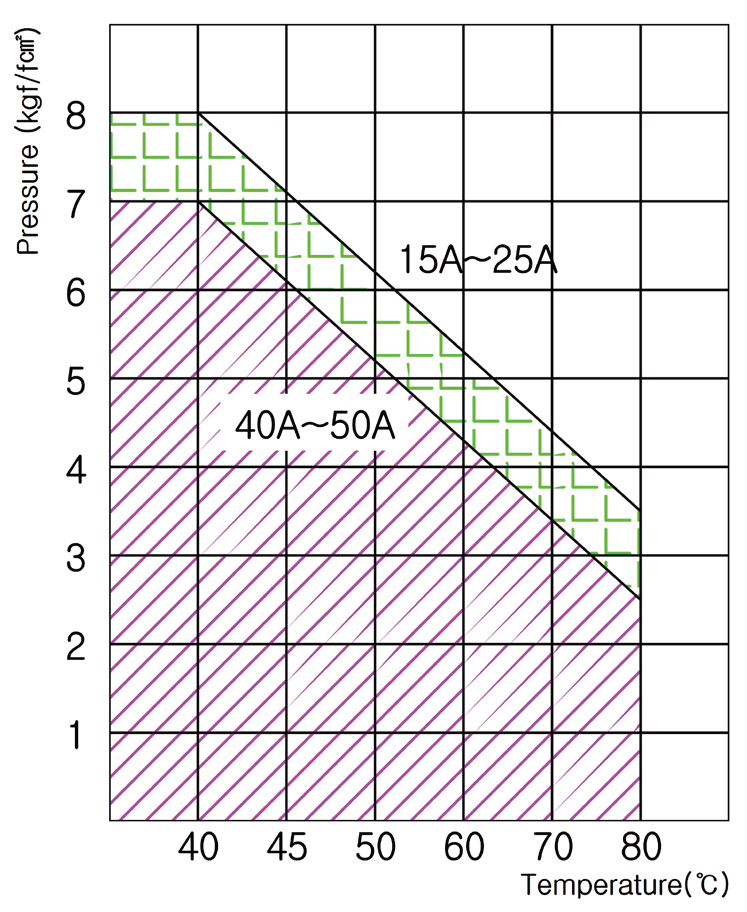

Operating Specifications
- Working Pressure
Max. 8kg/㎠ : 15A to 25A
Max. 7kg/㎠ : 40A to 50A
01 특징
  • All Size
  • Welding
  • User Length
02 장점
  • Pure PFA

    내화학성이 우수한 PFA 및 PTFE를 접액부에 사용하여 금속이온 및 기타오염원을 원천적으로 차단합니다.

  • Compact Design

    간결한 설계로 최소한의 공간을 차지하도록 제작하였습니다.

  • Clean Room

    깨끗한 공간에서 생산하여 오염물질이 혼합되지 않은 최상품의 제품을 제작합니다.

Part Number Nominal Size O.D O.D Tolerance Wall Thickness Wall THK. Tolerance
FP-015 15A 21.34 ±0.127 2.77 ±0.381
FP-020 20A 26.67 ±0.127 2.87 ±0.381
FP-025 25A 33.40 ±0.178 3.38 ±0.381
FP-040 40A 48.26 ±0.200 3.68 ±0.381
FP-050 50A 60.33 ±0.200 3.91 ±0.381

고객 요청에 따라 raw material 로도 제작 가능 합니다.
기타 본 카탈로그 이외의 규격은 별도 문의 바랍니다.

We can provide products made of other material as you want.
Please contact us if you want other size of products
