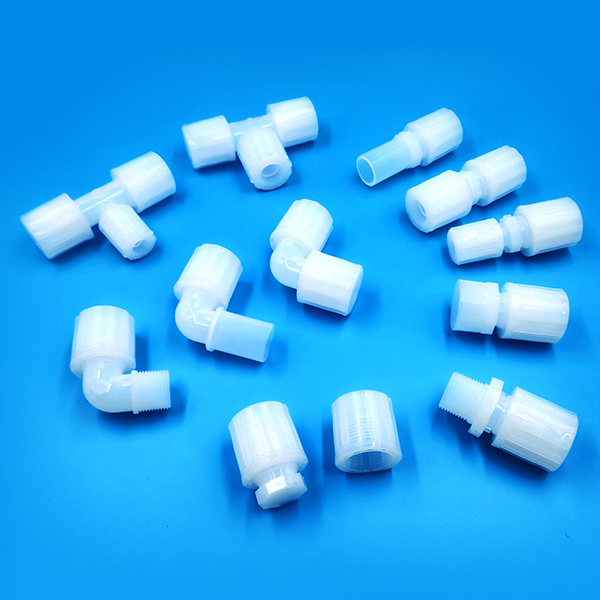

New Fitting For Tube
All Size
Flare
By using PFA and PTFE with excellent chemical resistance in the wetted parts, we fundamentally block metal ions and other contaminants.

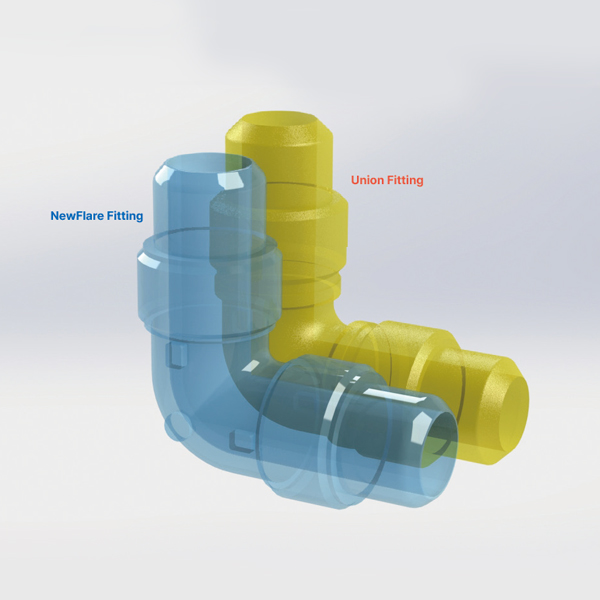

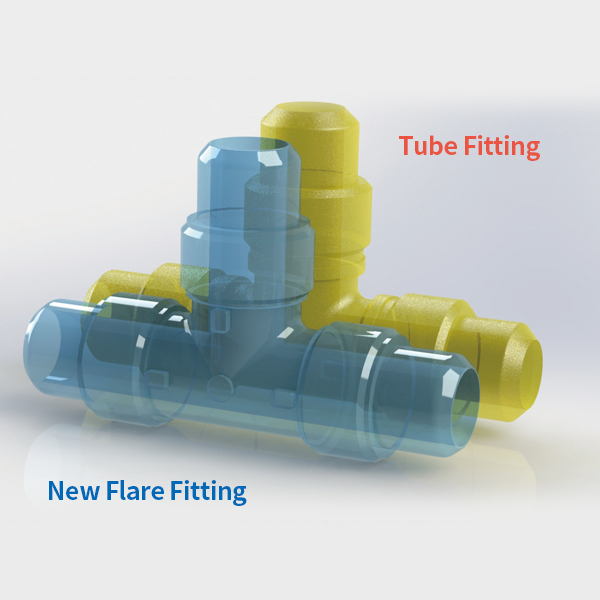

Designed with a simple structure to occupy minimal space.
Produced in a clean environment to manufacture top-quality products free from contaminants.
※ For Saver production inquiries, please contact the Sales Department.
| Part Number | Tube Size | Orifice(mm) | L(mm) | A(mm) |
|---|---|---|---|---|
| NF-SU-08 | 1/2" | 3.3 | 92.0 | 42.0 |
| NF-SU-12 | 3/4" | 6.0 | 99.0 | 45.0 |
| NF-SU-16 | 1" | 9.5 | 108.0 | 50.0 |
※ For Saver production inquiries, please contact the Sales Department.
| Part Number | Tube Size | Orifice(mm) | L(mm) | A(mm) | B(mm) |
|---|---|---|---|---|---|
| NF-UR-1205 | 3/4"x1/2" | 3.3 | 95.0 | 45.0 | 42.0 |
| NF-UR-1608 | 1"x1/2" | 6.00 | 100.0 | 50.0 | 42.0 |
| NF-UR-1612 | 1"x3/4" | 9.5 | 103.0 | 50.0 | 45.0 |
※ For Saver production inquiries, please contact the Sales Department.
| Part Number | Tube Size | Male NPT | L(mm) | A(mm) | B(mm) |
|---|---|---|---|---|---|
| NF-FC-0815N | 1/2" | 1/2" | 67.0 | 42.0 | 18.0 |
| NF-FC-1220N | 3/4" | 3/4" | 70.0 | 45.0 | 18.0 |
| NF-FC-1525N | 1" | 1" | 75.0 | 50.0 | 18.0 |
※ For Saver production inquiries, please contact the Sales Department.
| Part Number | Tube Size | Male NPT | L(mm) | A(mm) | B(mm) |
|---|---|---|---|---|---|
| NF-MC-0815N | 1/2" | 1/2" | 71.0 | 42.0 | 22.0 |
| NF-MC-1220N | 3/4" | 3/4" | 74.0 | 45.0 | 22.0 |
| NF-MC-1525N | 1" | 1" | 84.0 | 50.0 | 27.0 |
※ For Saver production inquiries, please contact the Sales Department.
| Part Number | Tube Size | L(mm) | A(mm) |
|---|---|---|---|
| NF-TC-08 | 1/2" | 49.0 | 42.0 |
| NF-TC-12 | 3/4" | 52.0 | 45.0 |
| NF-TC-16 | 1" | 57.0 | 50.0 |
※ For Saver production inquiries, please contact the Sales Department.
| Part Number | Pipe Size | Tube Size | L(mm) | A(mm) | B(Φ) | C(Φ) |
|---|---|---|---|---|---|---|
| NF-FAT-1508 | 15A | 1/2" | 88.0 | 38.0 | 16.0 | 21.0 |
| NF-FAT-1512 | 15A | 3/4" | 92.0 | 38.0 | 16.0 | 21.0 |
| NF-FAT-1516 | 15A | 1" | 96.0 | 38.0 | 16.0 | 21.0 |
| NF-FAT-2008 | 20A | 1/2" | 89.0 | 38.0 | 21.0 | 27.0 |
| NF-FAT-2012 | 20A | 3/4" | 94.0 | 38.0 | 21.0 | 27.0 |
| NF-FAT-2016 | 20A | 1" | 96.0 | 38.0 | 21.0 | 27.0 |
| NF-FAT-2508 | 25A | 1/2" | 88.0 | 38.0 | 27.0 | 34.0 |
| NF-FAT-2512 | 25A | 3/4" | 94.0 | 38.0 | 27.0 | 34.0 |
| NF-FAT-2516 | 25A | 1" | 98.0 | 38.0 | 27.0 | 34.0 |
※ For Saver production inquiries, please contact the Sales Department.
| Part Number | Tube Size | Orifice(mm) | L(mm) | A(mm) |
|---|---|---|---|---|
| NF-UT-08-08-08 | 1/2" | 3.3 | 97.0 | 52.0 |
| NF-UT-12-12-12 | 3/4" | 6.0 | 109.0 | 58.0 |
| NF-UT-16-16-16 | 1" | 9.5 | 129.0 | 67.0 |
※ For Saver production inquiries, please contact the Sales Department.
| Part Number | Tube Size | L(mm) | A(mm) |
|---|---|---|---|
| NF-RT-12-08-12 | 3/4"x1/2"x3/4" | 109.0 | 52.0 |
| NF-RT-16-08-16 | 1"x1/2"x1" | 129.0 | 58.0 |
| NF-RT-16-12-16 | 1"x3/4"x1" | 129.0 | 62.0 |
※ For Saver production inquiries, please contact the Sales Department.
| Part Number | Tube Size | Orifice(mm) | A(mm) |
|---|---|---|---|
| NF-UE-08 | 1/2" | 3.3 | 52.0 |
| NF-UE-12 | 3/4" | 6.0 | 58.0 |
| NF-UE-16 | 1" | 9.5 | 67.0 |
※ For Saver production inquiries, please contact the Sales Department.
| Part Number | Tube Size | Pipe Size | A(mm) | B(mm) |
|---|---|---|---|---|
| NF-ETA-0815 | 1/2" | 15A | 52.0 | 52.0 |
| NF-ETA_1220 | 3/4" | 20A | 58.0 | 56.0 |
| NF-ETA-1620 | 1" | 20A | 67.0 | 60.0 |
| NF-ETA-1225 | 3/4" | 25A | 58.0 | 56.0 |
| NF-ETA-1625 | 1" | 25A | 67.0 | 60.0 |
※ For Saver production inquiries, please contact the Sales Department.
| Part Number | Tube Size | Male NPT | A(mm) | B(mm) |
|---|---|---|---|---|
| NF-ME-0815N | 1/2" | 1/2" | 52.0 | 36.0 |
| NF-ME-1220N | 3/4" | 3/4" | 58.0 | 40.0 |
| NF-ME-1525N | 1" | 1" | 67.0 | 49.0 |
| Part Number | Tube Size | L(mm) | A(Φ) |
|---|---|---|---|
| SUN-04 | 1/4" | 27.0 | 23.0 |
| SUN-06 | 3/8" | 29.0 | 26.0 |
| SUN-08 | 1/2" | 33.0 | 30.0 |
| SUN-12 | 3/4" | 38.0 | 39.0 |
| SUN-16 | 1" | 43.0 | 50.0 |
