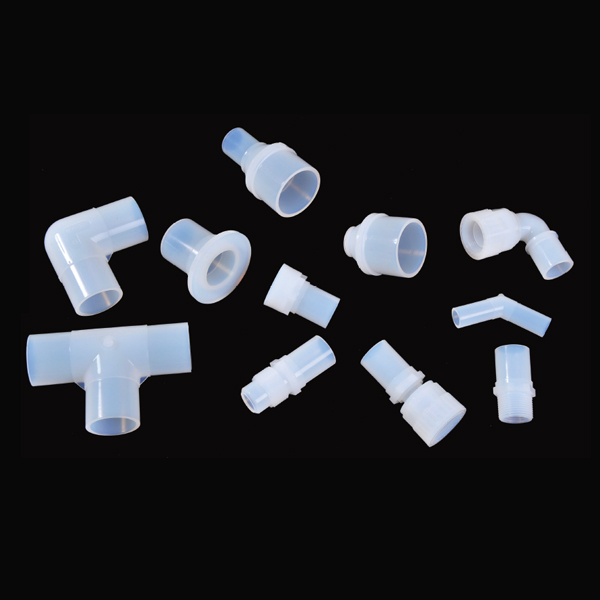

Pipe Fitting

Fitting For Welding

Characteristics EUBOND PIPE Fitting products give a rigid, leak-free piping system that suitable for high purity, high corrosive chemical handling applications in the Semiconductor, chemical and other industries where purity and corrosion resistance are necessary.
Operating Specifications
- Pipe Welding type size :
15A, 20A, 25A, 40A, 50A
- Working Pressure
   Max. 8kg/㎠ : 15A to 25A
   Max. 7kg/㎠ : 40A to 50A
- Working Temperature
   -10℃ to 60℃ : Ambient
   0℃ to 90℃ : Fluid
01 Features
  • All Size
  • Welding
02 Advantages
  • Pure PFA

    By using PFA and PTFE with excellent chemical resistance in the wetted parts, we fundamentally block metal ions and other contaminants.

  • Compact Design

    Designed with a simple structure to occupy minimal space.

  • Clean Room

    Produced in a clean environment to manufacture top-quality products free from contaminants.

03 Product Drawings

Tube Adaptor

+

Tube Adaptor

※ For Saver production inquiries, please contact the Sales Department.

Part Number Pipe Size Tube Size L(mm) A(mm) B(Φ) C(Φ)
FAT-1504 15A 1/4" 85.0 37.0 15.42 21.34
FAT-1506 15A 3/8" 89.0 37.0 15.42 21.34
FAT-1508 15A 1/2" 93.0 37.0 15.42 21.34
FAT-1512 15A 3/4" 97.0 37.0 15.42 21.34
FAT-1516 15A 1" 103.0 37.0 15.42 21.34
FAT-2004 20A 1/4" 85.0 37.0 20.55 26.67
FAT-2006 20A 3/8" 89.0 37.0 20.55 26.67
FAT-2018 20A 1/2" 93.0 37.0 20.55 26.67
FAT-2012 20A 3/4" 97.0 37.0 20.55 26.67
FAT-2016 20A 1" 103.0 37.0 20.55 26.67
FAT-2504 25A 1/4" 85.0 37.0 26.26 33.40
FAT-2506 25A 3/8" 89.0 37.0 26.26 33.40
FAT-2508 25A 1/2" 93.0 37.0 26.26 33.40
FAT-2512 25A 3/4" 97.0 37.0 26.26 33.40
FAT-2516 25A 1" 103.0 37.0 26.26 33.40
FAT-4024 40A 1-1/2" 140.0 37.0 40.52 48.26
FAT-4032 40A 2" 152.3 37.0 40.52 48.26
FAT-5032 50A 2" 180.0 37.0 52.13 60.33

Male Pipe Adaptor

+

Male Pipe Adaptor

Part Number Pipe Size Male NPT L(mm) A(mm) B(Φ) C(Φ)
FMA-1510N 15A 1/4" 61.0 34.0 15.42 21.34
FMA-1513N 15A 3/8" 61.0 34.0 15.42 21.34
FMA-1515N 15A 1/2" 66.0 34.0 15.42 21.34
FMA-1520N 15A 3/4" 66.0 34.0 15.42 21.34
FMA-1525N 15A 1" 71.0 34.0 15.42 21.34
FMA-2010N 20A 1/4" 61.0 34.0 20.55 26.67
FMA-2013N 20A 3/8" 61.0 34.0 20.55 26.67
FMA-2015N 20A 1/2" 66.0 34.0 20.55 26.67
FMA-2020N 20A 3/4" 66.0 34.0 20.55 26.67
FMA-2025N 20A 1" 71.0 34.0 20.55 26.67
FMA-2510N 25A 1/4" 61.0 34.0 26.26 33.40
FMA-2513N 25A 3/8" 61.0 34.0 26.26 33.40
FMA-2515N 25A 1/2" 66.0 34.0 26.26 33.40
FMA-2520N 25A 3/4" 66.0 34.0 26.26 33.40
FMA-2525N 25A 1" 71.0 34.0 26.26 33.40

Female Pipe Adaptor

+

Female Pipe Adaptor

Part Number Pipe Size Male NPT L(mm) A(mm) B(Φ) C(Φ)
FFA-1515N 15A 1/2" 67.0 34.0 15.42 21.34
FFA-1520N 15A 3/4" 67.0 34.0 15.42 21.34
FFA-1525N 15A 1" 67.0 34.0 15.42 21.34
FFA-2015N 20A 1/2" 67.0 34.0 20.55 26.67
FFA-2020N 20A 3/4" 67.0 34.0 20.55 26.67
FFA-2025N 20A 1" 67.0 34.0 20.55 26.67
FFA-2515N 25A 1/2" 67.0 34.0 26.26 33.4
FFA-2520N 25A 3/4" 67.0 34.0 26.26 33.4
FFA-2525N 25A 1" 67.0 34.0 26.26 33.4

Pipe Reducer

+

Pipe Reducer

Part Number Pipe Size L(mm) A(mm) B(mm) C(Φ) D(Φ) E(Φ) F(Φ)
FR-2015 20Ax15A 89.0 38.0 38.0 20.55 26.67 15.41 21.34
FR-2515 25Ax15A 89.0 38.0 38.0 26.26 33.40 15.42 21.34
FR-2520 25Ax20A 89.0 38.0 38.0 26.26 33.40 20.6 26.70
FR-4015 40Ax15A 111.0 38.0 38.0 40.52 48.26 15.42 21.34
FR-4020 40Ax20A 111.0 38.0 38.0 40.52 48.26 20.6 26.70
FR-4025 40Ax25A 111.0 38.0 38.0 40.52 48.26 26.26 33.40
FR-5020 50Ax20A 111.0 38.0 38.0 52.13 60.33 20.6 26.70
FR-5025 50Ax25A 111.0 38.0 38.0 52.13 60.33 26.26 33.40
FR-5040 50Ax40A 111.0 38.0 38.0 52.13 60.33 40.52 28.26

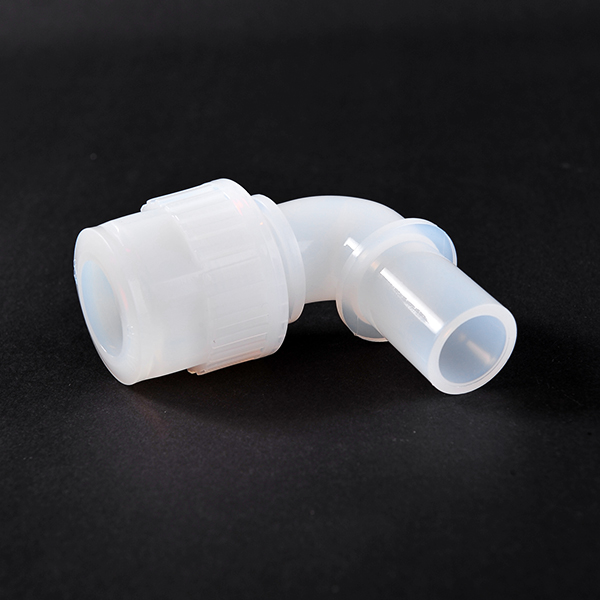

Elbow Tube Adaptor

+

Elbow Tube Adaptor

※ For Saver production inquiries, please contact the Sales Department.

Part Number Pipe Size Tube Size A(mm) B(mm)
FETA-1220 20A 3/4" 60.0 55.0
FETA-1225 25A 3/4" 60.0 55.0
FETA-1620 20A 1" 74.0 63.0
FETA-1625 25A 1" 74.0 63.0

Pipe Elbow

+

Pipe Elbow

Part Number Pipe Size A(mm) B(mm) C(Φ) D(Φ)
FE-015 15A 56.0 56.0 15.42 21.34
FE-020 20A 59.0 59.0 20.55 26.67
FE-025 25A 62.0 62.0 26.26 33.40
FE-040 40A 72.0 72.0 40.52 48.26
FE-050 50A 83.0 83.0 52.13 60.33

Pipe 45° Elbow

+

Pipe 45° Elbow

Part Number Pipe Size A(mm) B(mm)
F45E-015 15A 50.0 37.0
F45E-025 25A 50.0 37.0

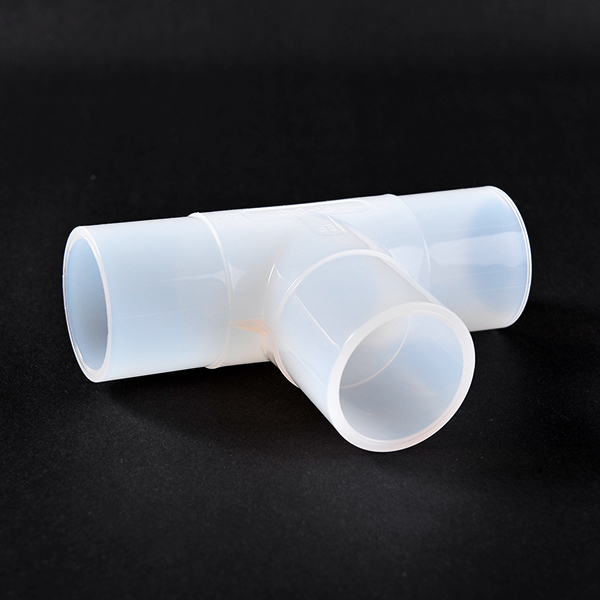

Pipe Tee

+

Pipe Tee

Part Number Pipe Size X Pipe Size Y Pipe Size Z L(mm) A(mm) B(mm)
FT-15-15-15 15A 15A 15A 113.0 38.0 56.0
FT-20-20-20 20A 20A 20A 117.0 38.0 58.0
FT-25-25-25 25A 25A 25A 123.0 38.0 62.0
FT-40-40-40 40A 40A 40A 146.0 38.0 73.0
FT-50-50-50 50A 50A 50A 80.0 20.0 40.0
FT-20-15-20 20A 15A 20A 80.0 20.0 40.0
FT-20-20-15 20A 20A 15A 80.0 20.0 40.0
FT-25-15-25 25A 15A 25A 123.0 38.0 61.0
FT-25-20-25 25A 20A 25A 123.0 38.0 61.0
FT-40-15-40 40A 15A 40A 146.0 38.0 73.0
FT-40-20-40 40A 20A 40A 146.0 38.0 73.0
FT-40-25-40 40A 25A 40A 146.0 38.0 73.0
FT-50-20-50 50A 20A 50A 166.0 38.0 83.0
FT-50-25-50 50A 25A 50A 166.0 38.0 83.0
FT-50-40-50 50A 40A 50A 166.0 38.0 83.0

Pipe Flange Adaptor

+

Pipe Flange Adaptor

Part Number Pipe Size L(mm) A(Φ) B(Φ) C(Φ) T(mm)
WFA-015 15A 57.0 49.0 21.0 22.0 5.0
WFA-020 20A 62.0 54.0 27.0 29.0 5.0
WFA-025 25A 72.0 64.0 34.0 36.0 5.0
WFA-040 40A 65.0 80.0 48.0 53.0 6.0
WFA-050 50A 63.0 88.0 60.0 62.0 6.0

Pipe for Tube Reducer

+

Pipe for Tube Reducer

Part Number Flange Size Tube Size L(mm) A(mm) B(mm) C(Φ) D(Φ) E(Φ) F(Φ)
FTR-4020 40A 1-1/4" 58.5 15.0 20.0 40.90 48.51 28.00 31.80
FTR-4024 40A 1-1/2" 58.5 15.0 20.0 40.90 48.51 33.74 38.10

Pipe End Cap

+

Pipe End Cap

Part Number Pipe Size L(mm) B(mm)
FC-015 15A 49.0 35.0
FC-020 20A 49.0 35.0
FC-025 25A 49.0 35.0
FC-040 40A 72.0 37.0
FC-050 50A 72.0 37.0
