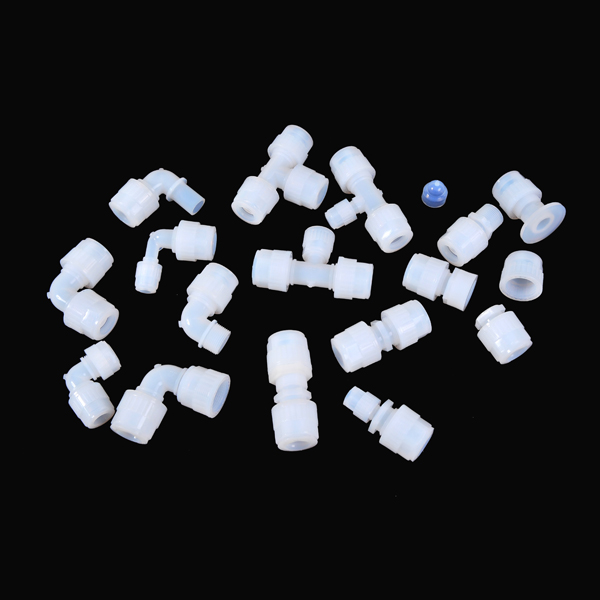

Tube Fitting

Fitting For Tube

Characteristics Eu-Tek tube fittings’ performance is extremely high when assembled properly.
There is low dead volume thereby decreasing changes for particle entrapment and bacterial growth.
Tube pressure performance will vary according to tube size and temperature. (Fig .1)

Eu-Tek Tube fittings assembly is completed by heating and flaring the end of the PFA type with the nut slipped over the tubing.
This is accomplished with a special shaping mandrel
(available from the factory as us)
Operating Specifications
After the tube cools from the flaring step, the nut with tube is placed over fitting nipple and hand tightened.
(Fig .2 and 3)

(FIG. 2) Eu-Tek Tube fitting connection

(FIG. 3) 1-1/2”, 2” fitting connection

- Tube flare size :
1/4”, 3/8”, 1/2”, 3/4”, 1”, 1-1/2”, 2”
- Working Pressure
   Max. 8kg/㎠ : 1/4” to 1”
   Max. 7kg/㎠ : 1-1/2” to 2”
- Working Temperature
   10℃ to 60℃ : Ambient
   0℃ to 90℃ : Fluid

(FIG. 1) Pressure, Temperature Graph

Retightening
All fittings connections assembled using the room temperature flaring technique should be retightened to the nut torque values identified in bellow Table.
Tubing Size 1/4" 3/8" 1/2" 3/4" 1" 1-1/2" 2"
kgf.㎠ 11~13 15~20 45~50 65~75 80~90 265~274 335~345
N.m 1.1~1.3 1.5~2 4.4~4.9 6.4~7.4 7.8~8.8 26~26.6 32.8~33.8
Tube Size A(Φ)
1/4" 7.8
3/8" 11
1/2" 14.7
3/4" 21.3
1" 28.6
1-1/2" 45
2" 56.5

fitting connection size

01 Features
  • All Size
  • Flare
02 Advantages
  • Pure PFA

    By using PFA and PTFE with excellent chemical resistance in the wetted parts, we fundamentally block metal ions and other contaminants.

  • Compact Design

    Designed with a simple structure to occupy minimal space.

  • Clean Room

    Produced in a clean environment to manufacture top-quality products free from contaminants.

03 Product Drawings

Straight Union

+

Straight Union

※ For Saver production inquiries, please contact the Sales Department.

Part Number Tube Size Orifice(mm) L(mm) A(mm)
SU-04 1/4" 3.3 79.0 36.0
SU-06 3/8" 6.0 81.0 37.0
SU-08 1/2" 9.5 87.0 40.0
SU-12 3/4" 15.0 95.0 44.0
SU-16 1" 21.5 107.0 50.0
SU-24 1-1/2" 36.0 184.0 86.0
SU-32 2" 45.0 256.0 122.0

Pannel Mount Union

+

Pannel Mount Union

※ For Saver production inquiries, please contact the Sales Department.

Part Number Tube Size Orifice(mm) Panel hole(Φ) L(mm) A(mm) B(mm) C(mm)
PM-04 1/4"x1/4" 3.3 15.0 95 52.0 36.0 13.0
PM-06 3/8"x3/8" 6.0 18.0 98.0 54.0 37.0 13.0
PM-08 1/2″x1/2″ 9.5 23.0 103.0 56.0 40.0 12.0
PM-12 3/4″x3/4″ 15.0 29.0 111.0 60.0 44.0 13.0
PM-16 1″x1″ 21.5 38.0 123 66.0 50.0 12.0
PM-0608 3/8"*1/2" 6.0 18.0 101.0 54.0 40.0 13.0
PM-0806 1/2"*3/8" 6.0 23.0 100.0 56.0 37.0 12.0
PM-1208 3/4”x1/2” 9.5 29.0 107 60.0 40.0 13.0
PM-1612 1″x3/4″ 15.0 38.0 117 66.0 44.0 14.0

Union Reducer

+

Union Reducer

※ For Saver production inquiries, please contact the Sales Department.

Part Number Tube Size Orifice(mm) L(mm) A(mm) B(mm)
UR-0604 3/8″x1/4″ 3.3 80.0 37.0 35.0
UR-0804 1/2″x1/4″ 3.3 83.0 40.0 35.0
UR-0806 1/2″x3/8″ 6.0 84.0 40.0 37.0
UR-1204 3/4″x1/4″ 3.3 87.0 44.0 36.0
UR-1206 3/4”x3/8” 6.0 88.0 44.0 37.0
UR-1208 3/4″x1/2″ 9.5 91.0 44.0 40.0
UR-1604 1”x1/4” 3.3 93.0 50.0 35.0
UR-1606 1”x3/8” 6.0 94.0 50.0 37.0
UR-1608 1”x1/2” 9.5 100.0 50.0 40.0
UR-1612 1″x3/4″ 15.0 101.0 50.0 44.0
UR-2416 1-1/2”x1” 21.5 148.0 86.0 50.0
UR-2412 1-1/2”x3/4″ 15.0 142.0 86.0 44.0
UR-3224 2”x1-1/2” 36.0 220.0 122.0 86.0

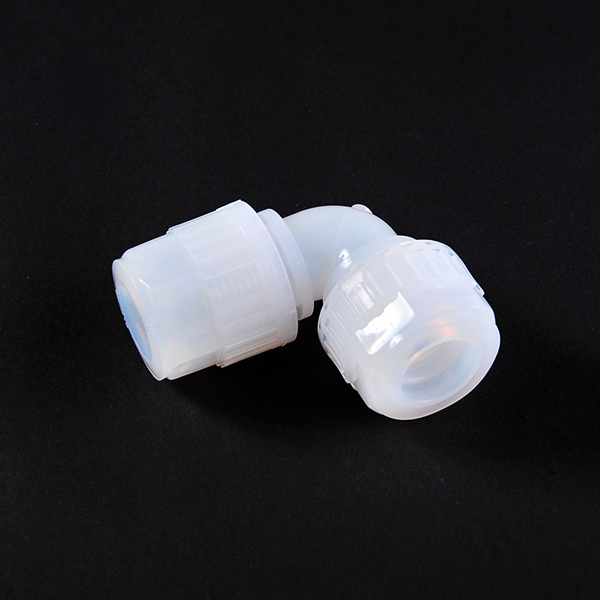

Union Elbow

+

Union Elbow

※ For Saver production inquiries, please contact the Sales Department.

Part Number Tube Size Orifice(mm) A(mm)
UE-04 1/4" 3.3 44.0
UE-06 3/8" 6.0 49.0
UE-08 1/2" 9.5 55.0
UE-12 3/4" 15.0 60.0
UE-16 1" 21.5 74.0
UE-24 1-1/2" 36.0 111.0
UE-32 2" 45.0 155.0

Space Saver Elbow

+

Space Saver Elbow

※ For Saver production inquiries, please contact the Sales Department.

Part Number Tube Size Orifice(mm) A(mm) B(mm)
SSE-04 1/4" 3.3 44.0 45.0
SSE-06 3/8" 6.0 49.0 50.0
SSE-08 1/2" 9.5 55.0 57.0
SSE-12 3/4" 15.0 60.0 64.0
SSE-16 1" 21.5 74.0 78.0
SSE-24 1-1/2" 36.0 111.0 93.0

Union Reducing Elbow

+

Union Reducing Elbow

※ For Saver production inquiries, please contact the Sales Department.

Part Number Tube Size A Tube Size B Orifice(mm) A(mm) B(mm)
RE-06-04 3/8″ 1/4″ 6.0 56.0 53.0
RE-08-04 1/2" 1/4" 6.0 56.0 50.0
RE-08-06 1/2" 3/8" 9.5 56.0 53.0
RE-12-04 3/4″ 1/4″ 9.5 61.0 50.0
RE-12-06 3/4″ 3/8″ 15.0 61.0 54.0
RE-12-08 3/4″ 1/2″ 15.0 61.0 58.0
RE-16-08 1″ 1/2" 15.0 71.0 58.0
RE-16-12 1″ 3/4″ 21.5 71.0 65.0

Tube Elbow

+

Tube Elbow

Part Number Tube Size A(mm B(mm) C(Φ) D(Φ)
TWE-020 3/4" 59.0 59.0 15.85 19.05
TWE-025 1" 65.0 65.0 22.00 25.40

Male Elbow

+

Male Elbow

※ For Saver production inquiries, please contact the Sales Department.

Part Number Tube Size Male NPT A(mm) B(mm)
ME-0405P 1/4" 1/8" 44.0 24.0
ME-0610P 3/8" 1/4" 49.0 28.0
ME-0613P 3/8" 3/8" 49.0 27.0
Part Number Tube Size Male NPT A(mm) B(mm)
ME-0410N 1/4" 1/4" 44.0 24.0
ME-0415N 1/4" 1/2" 43.0 30.0
ME-0810N 1/2" 1/4" 55.0 29.0
ME-0813N 1/2" 3/8" 55.0 30.0
ME-0815N 1/2" 1/2" 55.0 34.0
ME-0820N 1/2" 3/4" 55.0 36.0
ME-1220N 3/4" 3/4" 60.0 39.0
ME-1625N 1" 1" 74.0 48.0

Male Elbow For Quartz

+

Male Elbow For Quartz

※ For Saver production inquiries, please contact the Sales Department.

Part Number Tube Size A(mm) B(mm)
MEQ-1212 3/4" 60.0 52.0
MEQ-1616 1" 74.0 63.0

Tube for Tube Reducer

+

Tube for Tube Reducer

Part Number Flange Size Tube Size L(mm) A(mm) B(mm) C(Φ) D(Φ) E(Φ) F(Φ)
TTR-2416 38.1 1" 58.5 15.0 20.0 33.74 38.10 22.26 25.40

Flange for Tube Adaptor

+

PFA Flange for Tube Adaptor

Part Number Flange Size Tube Size L(mm) A(Φ) B(Φ) C(Φ) D(Φ) E(mm) T(mm)
FTA-4020 40A 1-1/4" 64.5 20.0 28.0 38.10 52.80 80.00 6.0
FTA-4024 40A 1-1/2" 64.5 20.0 33.50 38.10 52.80 80.00 6.0

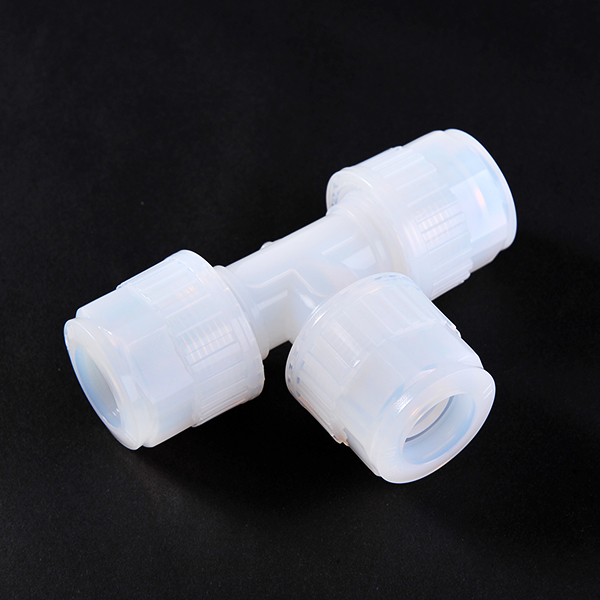

Union Tee

+

Union Tee

※ For Saver production inquiries, please contact the Sales Department.

Part Number Tube Size Orifice(mm) L(mm) A(mm)
UT-04-04-04 1/4" 3.3 88.0 44.0
UT-06-06-06 3/8" 6.0 98.0 49.0
UT-08-08-08 1/2" 9.5 110.0 55.0
UT-12-12-12 3/4" 15.0 120.0 60.0
UT-16-16-16 1" 21.5 142.0 70.0
UT-24-24-24 1-1/2" 36.0 224.0 111.5
UT-32-32-32 2" 45.0 310.0 155.0

Space Saver Tee

+

Space Saver Tee

※ For Saver production inquiries, please contact the Sales Department.

Part Number Tube Size L(mm) A(mm)
SST-04-04(S)-04 1/4"X1/4"(S)X1/4" 88.0 44.0
SST-06-06(S)-06 3/8"X3/8"(S)X3/8" 98.0 51.0
SST-08-08(S)-08 1/2"X1/2"(S)X1/2" 110.0 58.0
SST-12-12(S)-12 3/4"X3/4"(S)X3/4" 120.0 64.0
SST-16-16(S)-16 1"X1"(S)X1" 140.0 79.0

Union Reducing Tee

+

Union Reducing Tee

※ For Saver production inquiries, please contact the Sales Department.

Part Number Tube Size L(mm) A(mm)
RT-04-04-06 1/4"x1/4"x3/8" 90.0 43.0
RT-04-04-08 1/4"x1/4"x1/2" 107.0 43.0
RT-06-04-06 3/8"x1/4"x3/8" 95.0 44.0
RT-06-06-04 3/8"x3/8"x1/4" 92.0 48.0
RT-06-06-08 3/8"x3/8"x1/2" 101.0 48.0
RT-08-04-08 1/2″x1/4″x1/2” 110.0 48.0
RT-08-06-08 1/2″x3/8″x1/2” 110.0 52.0
RT-08-08-04 1/2”x1/2”x1/4” 107.0 56.0
RT-08-08-06 1/2”x1/2”x3/8” 101.0 56.0
RT-08-12-08 1/2”x3/4”x1/2” 110.0 57.0
RT-12-04-12 3/4″x1/4″x3/4” 121.0 53.0
RT-12-06-12 3/4″x3/8″x3/4” 121.0 55.0
RT-12-08-08 3/4″x1/2″x1/2″ 115.0 55.0
RT-12-08-12 3/4″x1/2″x3/4” 121.0 59.0
RT-12-12-08 3/4”x3/4”x1/2” 119.0 60.0
RT-16-04-16 1”x1/4”X1” 142.0 62.0
RT-16-08-16 1″x1/2″x1” 142.0 63.0
RT-16-12-16 1″x3/4″x1” 142.0 64.0
RT-16-16-04 1”x1”x1/4” 133.0 71.0
RT-16-16-08 1”x1”x1/2” 138.0 71.0
RT-16-16-12 1”x1”x3/4” 137.0 71.0
RT-24-04-24 1-1/2”x 1/4” x1-1/2” 224.0 71.0
RT-24-08-24 1-1/2”x 1/2” x1-1/2” 224.0 88.0
RT-24-12-24 1-1/2”x 3/4” x1-1/2” 224.0 90.0
RT-24-16-24 1-1/2”x 1” x1-1/2” 223.0 90.0
RT-32-24-32 2”x1-1/2”x2” 230.4 99.0

Male Connector

+

Male Connector

※ For Saver production inquiries, please contact the Sales Department.

Part Number Tube Size Male NPT L(mm) A(mm) B(mm)
MC-0410P/N 1/4″ 1/4″ 54.0 34.0 13.0
MC-0413P/N 1/4" 3/8" 56.0 34.0 15.0
MC-0415P/N 1/4" 1/2" 60.0 34.0 19.0
MC-0420P/N 1/4" 3/4" 61.0 34.0 20.0
MC-0610P/N 3/8" 1/4" 56.0 36.0 13.0
MC-0613P/N 3/8" 3/8" 58.0 36.0 15.0
MC-0615P/N 3/8" 1/2" 62.0 36.0 19.0
MC-0620P/N 3/8" 3/4" 63.0 36.0 20.0
MC-0810P/N 1/2" 1/4" 60.0 40.0 13.0
MC-0813P/N 1/2" 3/8" 62.0 40.0 15.0
MC-0815P/N 1/2" 1/2" 66.0 40.0 19.0
MC-0820P/N 1/2" 3/4" 67.0 40.0 20.0
MC-0825P/N 1/2" 1" 71.0 40.0 24.0
MC-1213P/N 3/4" 3/8" 66.0 44.0 15.0
MC-1215P/N 3/4" 1/2" 70.0 44.0 19.0
MC-1220P/N 3/4" 3/4" 71.0 44.0 20.0
MC-1225P/N 3/4" 1" 75.0 44.0 24.0
MC-1615P/N 1" 1/2" 77.0 51.0 19.0
MC-1620P/N 1" 3/4" 78.0 51.0 20.0
MC-1625P/N 1" 1" 82.0 51.0 24.0

Female Connector

+

Female Connector

※ For Saver production inquiries, please contact the Sales Department.

Part Number Tube Size Male NPT L(mm) A(mm) B(mm)
FC-0415N 1/4" 1/2" 61.0 34.0 20.0
FC-0420N 1/4" 3/4" 61.0 34.0 20.0
FC-0425N 1/4" 1" 62.0 34.0 21.0
FC-0610N 3/8" 1/4" 63.0 36.0 20.0
FC-0615N 3/8" 1/2" 63.0 36.0 20.0
FC-0620N 3/8" 3/4" 63.0 36.0 20.0
FC-0625N 3/8" 1" 64.0 36.0 21.0
FC-0815N 1/2" 1/2" 67.0 40.0 20.0
FC-0820N 1/2" 3/4" 67.0 40.0 20.0
FC-0825N 1/2" 1" 68.0 40.0 21.0
FC-1215P/N 3/4" 1/2" 71.0 44.0 20.0
FC-1220N 3/4" 3/4" 71.0 44.0 20.0
FC-1225N 3/4" 1" 72.0 44.0 21.0
FC-1615N 1" 1/2" 78.0 51.0 20.0
FC-1620P/N 1" 3/4" 78.0 51.0 20.0
FC-1625N 1" 1" 79.0 51.0 21.0

Union Flange Adaptor

+

Union Flange Adaptor

※ For Saver production inquiries, please contact the Sales Department.

Part Number Tube Size L(mm) A(Φ) B(Φ) T(mm)
FA-08 15Ax1/2" 64.0 21.0 49.0 5.0
FA-12 20Ax3/4" 70.0 27.0 54.0 5.0
FA-16 25Ax1" 76.0 33.0 63.0 5.0
FA-24 40Ax1-1/2" 117.0 64.0 83.0 9.0
FA-2416 40Ax1" 92.0 64.0 83.0 9.0

NUT

+

NUT

Part Number Tube Size L(mm) A(Φ)
UN-04 1/4" 27.0 23.0
UN-06 3/8" 29.0 26.0
UN-08 1/2" 33.0 30.0
UN-12 3/4" 38.0 39.0
UN-16 1" 43.0 50.0
UN-24 1-1/2" 62.0 78.0
UN-32 2" 75.0 92.0

End Cap

+

End Cap

Part Number Tube Size L(mm)
UC-04 1/4" 24.0
UC-06 3/8" 27.0
UC-08 1/2" 30.0
UC-12 3/4" 33.0
UC-16 1" 36.0
UC-24 1-1/2" 86.0
UC-32 2" 120.0

Tube Cap

+

Tube Cap

Part Number Tube Size L(mm) A(mm)
TC-04 1/4" 42.0 34.0
TC-06 3/8" 45.0 36.0
TC-08 1/2" 49.0 40.0
TC-12 3/4" 54.0 45.0
TC-16 1" 59.0 50.0
TC-24 1-1/2" 99.0 86.0
