Air-Separater
Air-Separater
Product
Introduction
Introduction
Product
Introduction
Introduction
Product Details
- Pipe outside diameter : 107mm
- Pipe wall thickness : 7mm
- Pipe and End caps : PFA
- Max. Operating Pressure: 6kg/㎠
- Pipe wall thickness : 7mm
- Pipe and End caps : PFA
- Max. Operating Pressure: 6kg/㎠

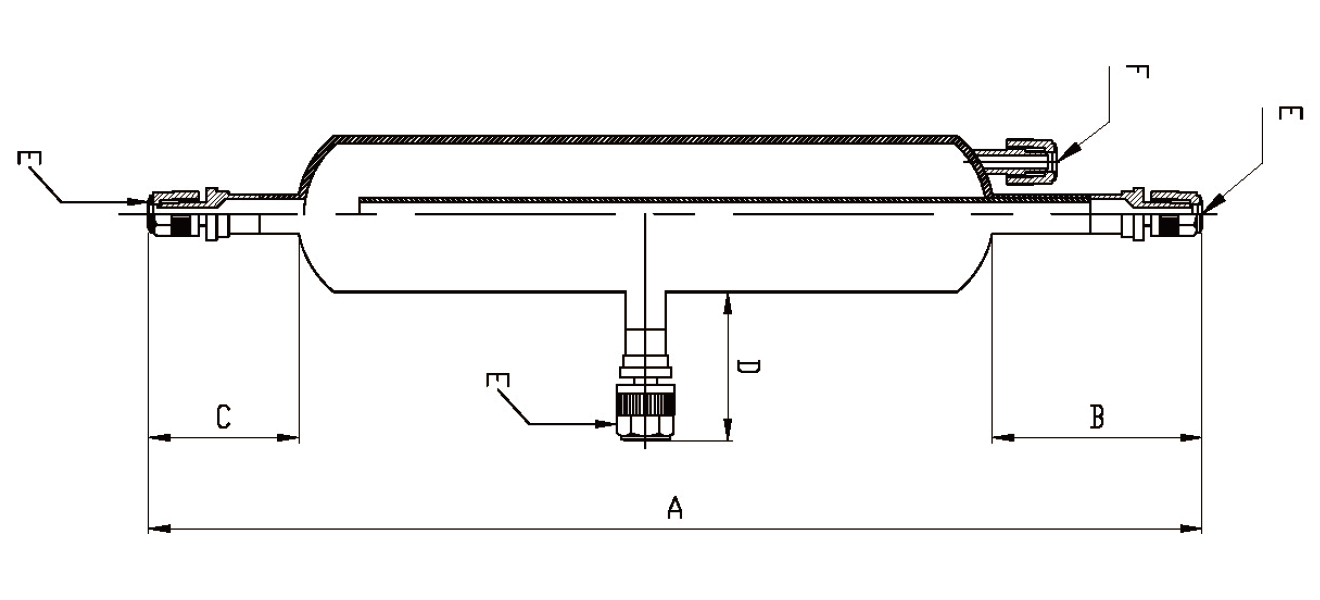

Product Drawings
| Part Number | Pipe Size(O.D) | Pipe wall thickness | Capacity |
|---|---|---|---|
| AS-100-3L | 107mm | 7mm | 3L |
| POINT | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| SIZE(mm) MIN. |
695 | 135 | 95 | 95 | TUBE ADAPTOR 3/4” WELDING |
1/2” UNION |
We can provide products made of other material as you want.
Please contact us if you want other size of products
