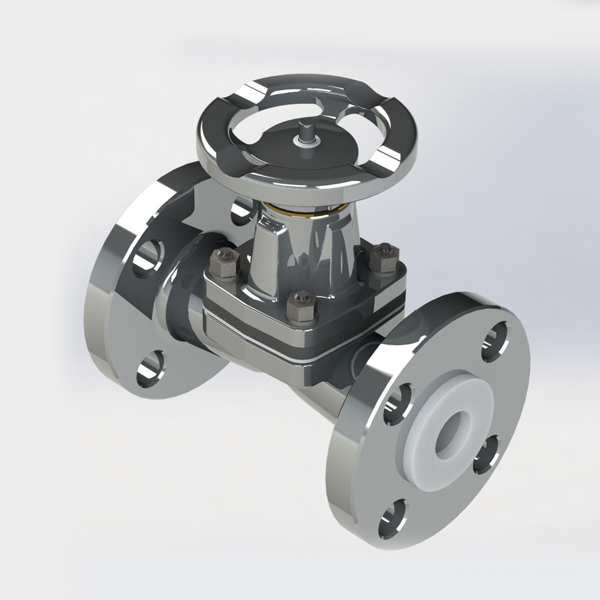

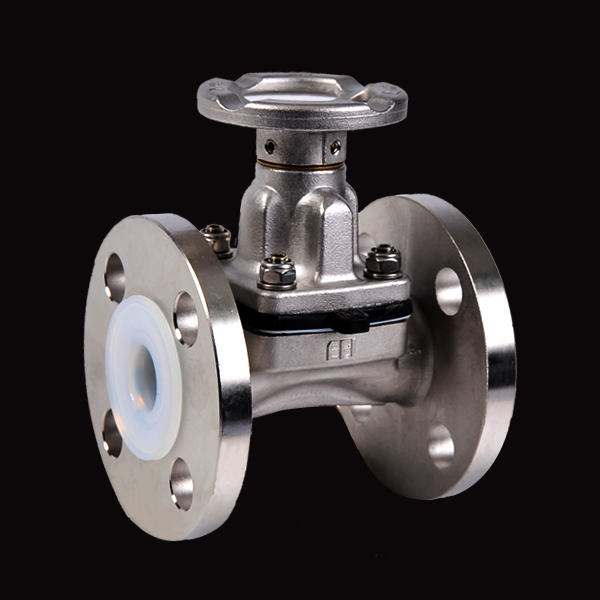

Lined Diaphragm Valve

특성 PUREFLO PFA LINED Valve는 반도체, 화학 및 기타 산업에서 고순도, 고부식성 화학 처리에 적합합니다.
PUREFLO PFA LINED Valve are suitable for high purity, high corrosive Chemical handling applications in the semiconductor, chemical and other Industries.

제품 상세 정보

- Operation Pressure : Max. 10kg/㎠
- Working Temperature : Max. 120℃
- Wetted flow path : PFA
- Diaphragm : New PTFE
- Actuator parts : SCS, EPDM

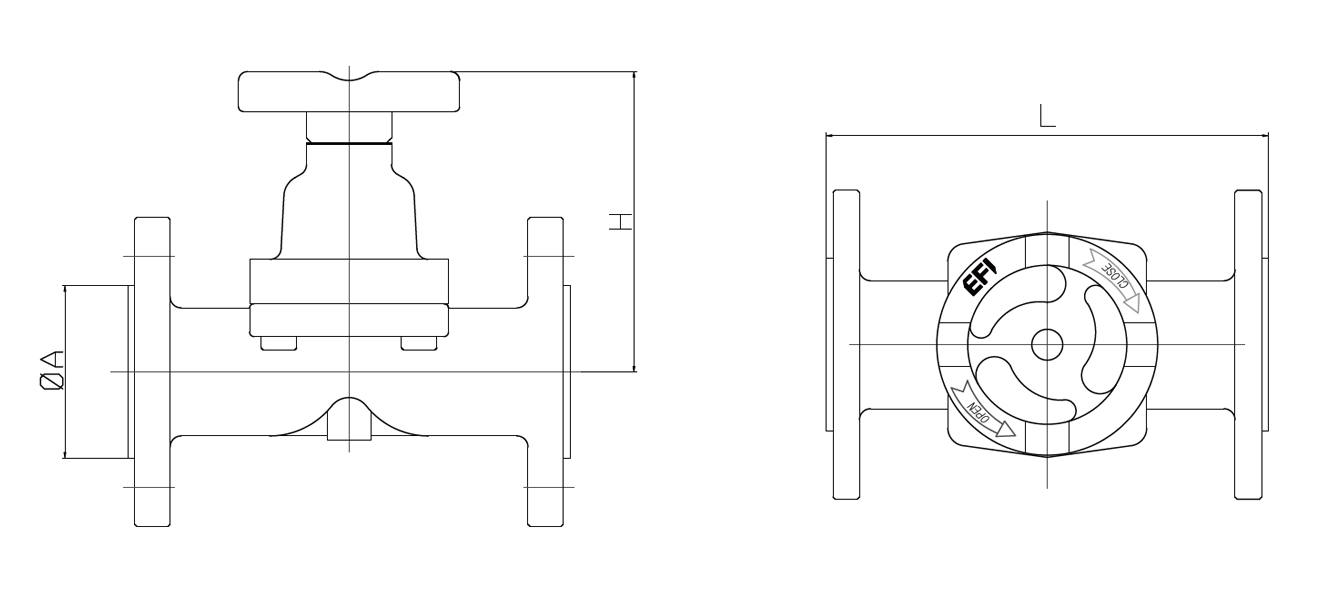

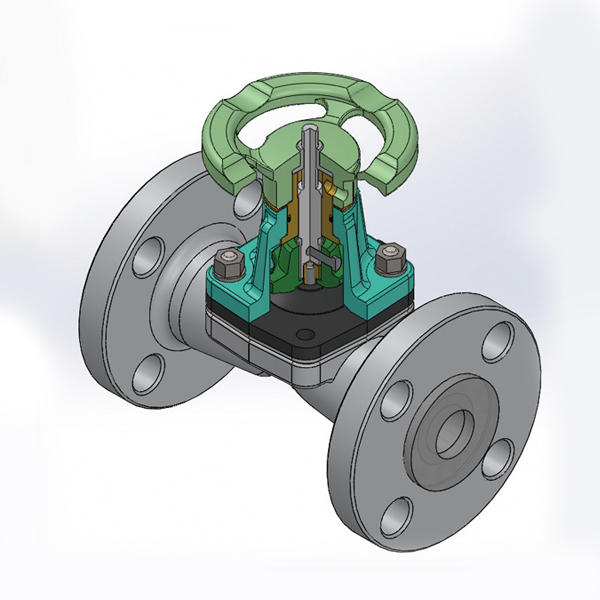

제품 도면

Part No.	Nominal Size		Flow Factor (Cv)	L (mm)	A (Φ)	H (mm)
Part No.	JIS-10K	ANSI-150Lbs	Flow Factor (Cv)	L (mm)	A (Φ)	H (mm)
LDV-015	15A	1/2"	3.6	130.0	48.00	88
LDV-020	20A	3/4"	6.63	150.0	53.00	99
LDV-025	25A	1"	8.78	160.0	63.00	109
LDV-040	40A	1-1/2"	25.68	200.0	73.00	137
LDV-050	50A	2"	42.66	230.0	91.00	152.5
